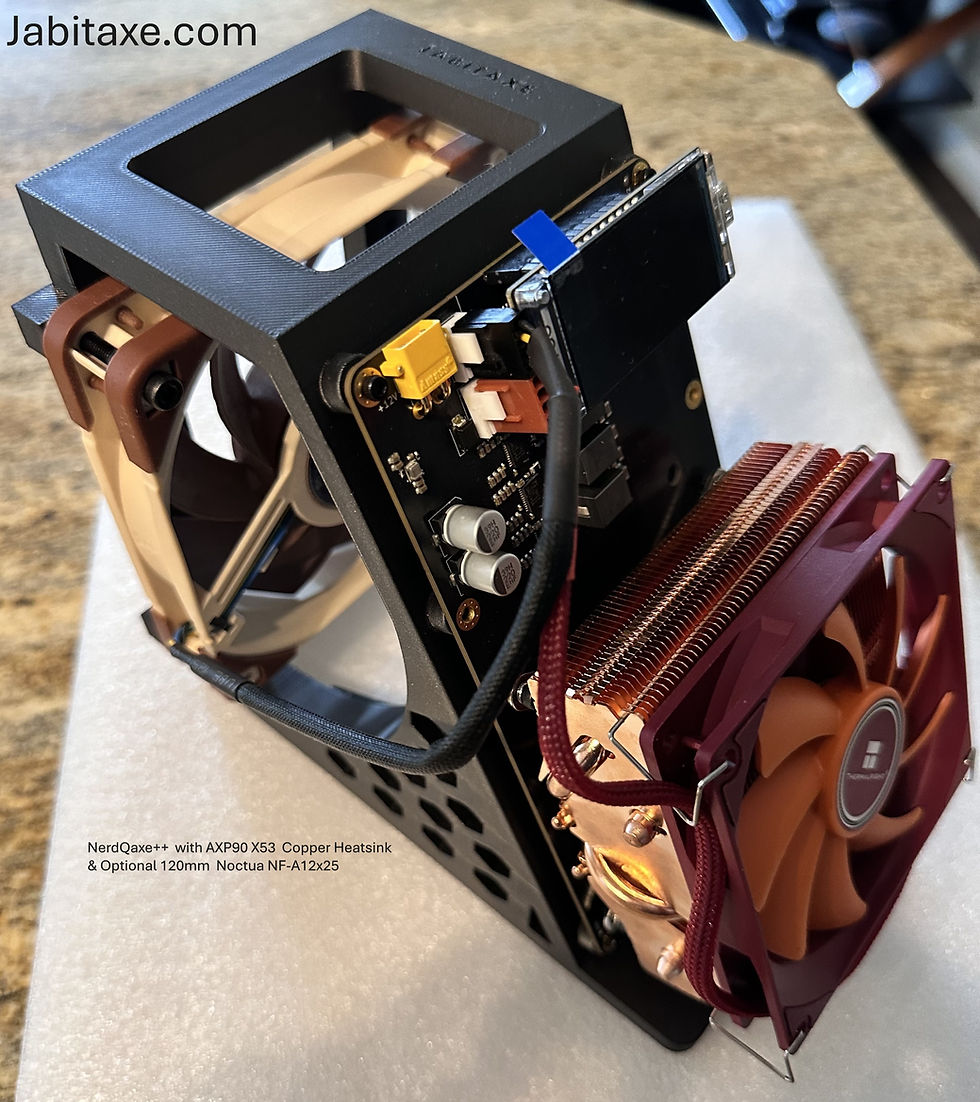

The NerdQaxe++ Rev 6.2 with 4 x BM1370 comes with great flexibility that allows for extreme overclocking up to 6.8 TH/s @ 110 ~ 145 W. Its ideal for home solo mining at an affordable price.
- Normal hashrates range from 4.0 ~ 4.8 TH/s @ 68 ~ 105 W
- Over Clocked hashrates range from 4.9 ~ 6.8 TH/s @ 110 ~ 145 W
Technical Specifications:
- Mining Chip: 4 x BM1370 Asic chips ( Same chips as in S21 Pro Series)
- Air or Hydro Cooling options:
- Air cooling: Thermalright AXP90 X36 (Aluminium) Low profile Heatsink ( TDP: ~ 95W ) or
- Air cooling: Thermalright AXP90 X53 (Copper ) Low profile Heatsink ( TDP: ~ 105W to 135W ) or
- Hydro Cooling: Highly efficient closed-loop Liquid AIO cooling block ( TDP: ~ 200W )
- Display: Lilygo T-Display S3 comes with Latest ESP32-S3 containing ESP32-S3R8 Dual-core LX7 microprocessor with miner memory: 16MB Flash & 8MB PSRAM
- PSU Options:
- Standard 12.4V, 10A Power Block ( 124W ).
- LRS-200-12 Kit (200W) suitable for over clocking operations.
- LRS-350-12 Kit (350W) suitable for over clocking operations.
- Normal Miner Power Consumption: 70W ~ 105 W.
- Over Clocking power consumption: > 105W
- Wireless Connectivity: Wi-Fi 802.11, BLE 5 + BT mesh.
- Stand: Jabitaxe Durable stand.
Some key features :
- Better trace layout for lower temperatures.
- Advanced heatsink and Silent fan with high CFM or Hydro Cooling (Highly efficient closed-Loop Liquid AIO cooling block)
- Advanced power monitoring with Power supply fuses that can be reset..
- XT30 power input connector.
- Better placement of temperature sensors on PCB for improved accuracy.
- Uses Standard FR-4 PCB with ENIG finish.
NOTE:
- Users who want to carefully overclock NerdQaxe++ Miner Rev 6.2 to higher hashrates we recommend to use the:
- Jabitaxe LRS-200-12 (200W) PSU Kit or LRS-350-12 (350W) PSU Kit and
- Jabitaxe AXP90-X53 (Copper ) Air cooling (TDP: ~ 105 to 135W ) or Hydro Cooling ( TDP: 200W)
What is in the package ? :
- NerdQaxe++ unit (Assembled & Firmware loaded with default factory settings).
- Jabitaxe durable 3D-printed stand with option to attach rear optional fan: 80mm, 90mm, 92mm or 120mm Fan
- PSU kits available:
- Standard 12.4V, 10A (124W) Power Supply or
- Jabitaxe LRS-200-12 PSU Kit or
- Jabitaxe LRS-350-12 PSU Kit or
- Online detailed setup guide.
NerdQaxe++ Rev 6.2 Bitcoin Solo Miner
Rating is 5.0 out of five stars based on 2 reviews
SKU: NERDQAXE-PLUSPLUS-1
$419.00Price
Excluding Sales Tax
- Better trace layout for lower temperatures
- Advanced Heatsink and Silent fan with high CFM
- Advanced Power Monitoring with Power supply fuses that can be reset when tripped.
- XT30 power input connector
- Better placement of temperature sensors on PCB for improved accuracy.
- uses our standard FR-4 PCB with ENIG finish
Reviews
Great staff, product running perfect. I have it over clocked running steady at 6.5 and 7TH. Going to purchase another soon. Thanks guys!
Just got my NerdQaxe++ with the hydro cooled block because it looks awesome. I had some technical issues upfront but customer support was there to help 24/7 with instant replies. They were more than happy to walk me through and get me up and hashing in no time. Very happy and highly recommend.
