Bitaxe Miners:

Is the first fully open source hardware Bitcoin Single ASIC miner in small factor( just slightly larger than size of a credit card), can mine any SHA256 Coins such as Bitcoin (BTC), Bitcoin Cash (BCH), Bitcoin SV (BSV), Hathor (HTR), Syscoin (SYS), Elastos (ELA), Namecoin (NMC), Peercoin (PPC), Litecoin Cash (LCC), Digibyte (DGB), eCash (XEC), Fractal Bitcoin (FB) , etc

Unit Condition:

Condition: New
Location: Toronto, ON, Canada
Shipping Date: Ships within 1 business day of payment clearance.

We recommend adjustable 5V for consistent and reliable 5V power delivery for all Bitaxe Gamma Miners.

Currently available variants of Bitaxe Gamma:

For Basic variants consider :

Bitaxe Gamma + Basic 40mm 5V Fan + Basic 40mm Heatsink + Basic Stand + Basic 5V,6A (30W) PSU

Bitaxe Gamma Board only ( No Fan , No Heatsink and No PSU ) .This is suitable for resellers.

For Standard variants consider :

Bitaxe Gamma + Noctua NF-A4x20 5V PWM 4-Pin 40mm Fan + Basic 40mm Heatsink + Basic Stand + 5V,6A (30W) PSU

NOTE: All Basic and Standard Bitaxe variants come with Basic minimalist stand + Basic 5V,6A (30W) PSU

For OC capable variants consider selecting bitaxe miner with single Noctua fan and adjustable 5V PSU :

Bitaxe Gamma + Noctua NF-A6x25 5V PWM 4-Pin 60mm Fan + ICE Low Profile Plus 60mm Heatsink + Over Clocking stand + Adjustable 5V, 14A (75W) PSU

Bitaxe Gamma + Noctua NF-A6x25 5V PWM 4-Pin 60mm Fan + Argon THRML Tower 60mm+ Over Clocking stand + Adjustable 5V, 14A (75W) PSU

Bitaxe Gamma + Noctua NF-A6x25 or NF-A4x20 5V PWM 4-Pin 40mm Fan + ICE Tower 40mm Heatsink + Over Clocking stand + Adjustable 5V, 14A (75W) PSU

For Extreme OC capable variants consider bitaxe miner with Dual Noctua fans and adjustable 5V PSU:

Bitaxe Gamma + Noctua NF-A6x25 5V PWM 4-Pin 60mm Fan (TopSide) + Noctua NF-A4x20 5V PWM 4-Pin 40mm Fan (BottomSide) + ICE Low Profile Plus 60mm Heatsink + Over Clocking stand + Adjustable 5V, 14A (75W) PSU

Bitaxe Gamma + Noctua NF-A6x25 5V PWM 4-Pin 60mm Fan (TopSide) + Noctua NF-A4x20 5V PWM 4-Pin 40mm Fan (BottomSide) + Argon THRML Tower 60mm Heatsink+ Over Clocking stand + Adjustable 5V, 14A (75W) PSU

Bitaxe Gamma + Noctua NF-A6x25 or NF-A4x20 5V PWM 4-Pin 40mm Fan (TopSide) + Noctua NF-A4x20 5V PWM 4-Pin 40mm Fan (BottomSide) + ICE Tower 40mm Heatsink + Over Clocking stand + Adjustable 5V, 14A (75W) PSU

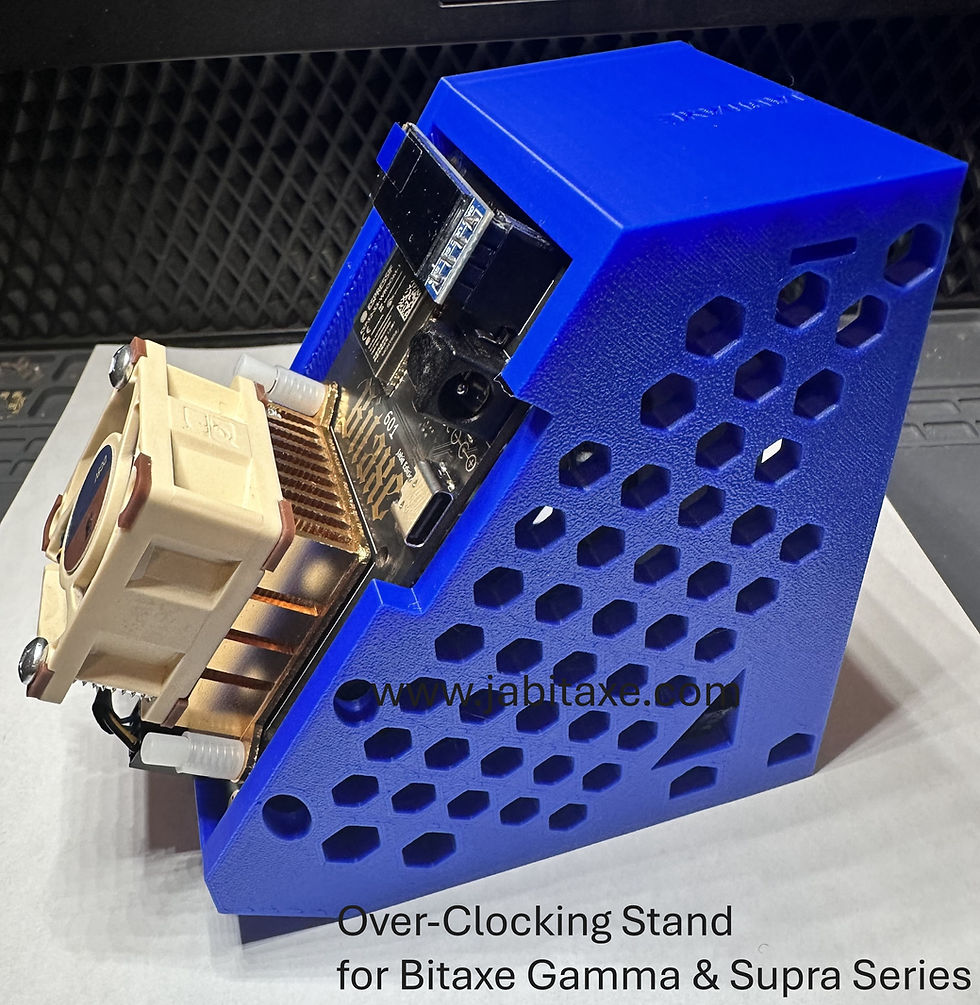

NOTE: All OC and Extreme capable Bitaxe variants come with durable Over Clocking stand + 5V PSU ( Basic or Adjustable 5V depending on your choice. we recommend adjustable 5V for consistent and reliable 5V power delivery for all Bitaxe Gamma Miners)

Accepted Payments:

Credit cards via PayPal
CryptoCurrencies ( BTC, Ethereum, USDT, USDC, Litecoin )

All total order Checkouts is in USD$ :

our website allows all customers to view product prices in a familiar currency , namely USD$ , CAD$ and EUR$ during browsing but the currency of sale for all transactions is always in USD$ and does not change. Your total order payment during final checkout will be in USD$

Resellers and bulk purchase :

Automatic discounts available for resellers for bulk purchase and we ship worldwide to resellers.

Bitaxe Gamma Miner (Official )

Name: Bitaxe Gamma Miner (Official )
Brand: JaBIT
Rating: 4.3 (4 reviews)

Rating is 4.2 out of five stars based on 4 reviews

$108.00

Excluding Sales Tax

Quantity

Expected ship date is up to 3 to 6 Weeks after pre-order has been paid and confirmed.

About the Bitaxe Single Chip Miner :

Bitaxe is the first fully open-source hardware Bitcoin ASIC miner. Gamma is the 6th revision that includes a BM1370 ASIC Chip from S21 Pro. Supra is the 4th revision that includes a BM1368 ASIC Chip from Antminer S21. Ultra is the 3rd major revision of the Bitaxe that includes the BM1366 ASIC chip from Antminer S19XP. A 5V DC power supply with 2.1/5.5mm barrel jack connector is included with Bitaxe. US to EU plug adapter included with all overseas orders.

Powered by the AxeOS, an open-source firmware that gives you full control over your mining. Change settings and monitor performance on a modern web-interface.

Bitaxe has proven that it can mine Bitcoin blocks , having found a block in July 2024.

Powerful bitcoin miner in small factor( just slightly larger than size of a credit card), can mine any SHA256 Coins such as BitCoin(BTC), Bitcoin Cash(BCH) , Bitcoin SV (BSV), Litecoin Cash (LCC), NameCoin, Digitbyte, etc

Completely silent operation, includes Mini heatsink to cool miner.

Mining Algorithm: SHA-256, Minable Coins: Bitcoin (BTC), BitcoinCash (BCH), Acoin (ACOIN), Curecoin (CURE), Joulecoin (XJO), Unbreakable (UNB), Peercoin (PPC), Mark (DEM), Terracoin (TRC), BitcoinSV (BSV)

Advantages:

Standalone: can mine directly to your pool over WiFi. No External computer needed.

Embedded: low cost, low maintenance, high availability, high reliability, low power.

ASIC: based on the very efficient BM13xx from Bitmain.

Versatile: solo/pool mining, autotune power/heat/efficiency.

Open Source: All design files are provided.

Features

ESP32-S3-WROOM-1: 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth® 5 module Built around ESP32-S3 series of SoCs, Xtensa® dual-core 32-bit LX7 microprocessor Flash up to 16 MB, PSRAM up to 16 MB Up to 36 GPIOs, rich set of peripherals with On-board PCB antenna

TI TPS546D24A / TPS546D24S : 2.95-V to 16-V, stackable 40-A synchronous SWIFT™ step-down converter with pin-strapping and PMBus and steps down the 5V input to power the BM13xx

Microchip EMC2101: measures the BM13xx internal diode temperature. Also PWM controls the fan and monitors tach output.

USB TYPE-C : USB 2.0 Receptacle Connector 24 (16+8 Dummy) for uploading firmware to configure the device or review debug logs through serial connection:

AXEOS : is the software that powers every BitAxe and It instructs the ESP microcontroller inside the BitAxe how to speak to its mining ASIC and it hosts a Configuration-UI right on the BitAxe itself. This makes it possible to control and monitor your BitAxe through a Webbrowser.

Two switch buttons to Reset or Boot the Bitaxe Gamma.

Documentation:

All Design sources and docs, visit : bitaxe.org
Return Policy:

Please read the complete return policy before you purchase our products https://www.jabitaxe.com/returns-policy

Below is the return policy summary:

Any purchase on our site automatically abides by this return policy. Please, if you don't agree to the following return conditions don't purchase the product

All Returns are accepted 14 days after purchase.

The item must be returned in the original packaging and condition with all the accessories.

Buyer will be responsible to pay all return shipping cost and custom duties for the return package.

Buyer shall pay 20% restocking fee for any returns.This will be deducted from the Buyer's refund.

Please contact us before returning an item in case its a technical issue.
All shipping is from our location in Toronto, Canada. For guaranteed delivery, we ship using UPS , FEDEX, and Canada Post (Purolator) with tracking number for every package and requires a signature for package delivery.

Handling :

Sameday handling

Shipping:

Sameday if order is placed before 1:00 PM EST

Next day if order is placed after 1:00 PM EST
Attach the display to Bitaxe Unit . You skip this section if your bitaxe was purchased with an enclosure

Power your Bitaxe unit by plugging Bitaxe into the included 5V power supply. Please do not plug any non-approved 12V power since that will permanently damage the device.

The Bitaxe unit will now attempt to connect to a default network, which it will not find. To configure the Bitaxe use a WiFi capable device such as a Phone or Laptop and search for the new WiFi Access point Bitaxe_XXXX. Connect to the Bitaxe SSID and you should be prompted for or redirected to the AxeOS web portal. If this does not happen after you connect to the Bitaxe, open your browser and visit http://192.168.4.1

When you see the AxeOS web portal click on the ‘settings’ button

Configure the WiFi SSID and password for your local WiFi network (Note: Bitaxe is not compatible with 5Ghz Wifi, it only works with 2.4Ghz WiFi). Double check your WiFi SSID name and password before entering, to prevent manual recovery later.

Update the pool URL, port and user to your preferred pool. We recommend ckpool or publicpool for solo mining.

Documentations:

Bitaxe Gamma setup guide

How to manually Flash or update Bitaxe Gamma Miner using bitaxetool on Ubuntu 24.04

Reviews

Rated 4.3 out of 5 stars.

Based on 4 reviews

4 reviews

David MarshallJul 16
Rated 2 out of 5 stars.
Verified
2 Stars for after sales
First unit failed and was replaced however second unit same thing,i just gave up and called it a loss.............in future will only buy from BitAxe
Was this helpful?
Store Owner•
Jul 16
Sorry to hear you are unhappy. We would be glad to discuss this issue the same way we took care of your initial concern. Our team tests all Bitaxe Gamma miners just before they are shipped and supply detailed instructions on how to set up the miners correctly and have them running. We are available to troubleshoot and replace as needed.
PhyrexJun 25
Rated 5 out of 5 stars.
Verified
Axellent
Good communication
Fast shipping
Great packaging
Good product
Overall axellent
Was this helpful?
Store Owner•
Jun 25
Thank you so much. We are glad that you did have great experience. We look forward to continuing to work and support you .
Amir RichardsMay 16
Rated 5 out of 5 stars.
Great Bitaxe Gamma Miner
Fast Shipping , professional packaging , brand new , up and hashing at 1.2Th/s . From excellent customer support and delivery - all were hassle-free and pleasant.
Was this helpful?
Store Owner•
May 16
Thank you!
Annie BogdanMay 22
Rated 5 out of 5 stars.
Highly recommend OC Bitaxe Gamma miner
Its great and just works as we expected! Great job! I recommend ordering from here. Hashing at avg. 2.15 Th/s
Was this helpful?
Store Owner•
May 24
Thank you!

Bitaxe Quantity	Discounts (%)
3 - 9	0.25 %
10 - 24	0.50 %
25 - 99	1.00 %
100+	1.50 %
